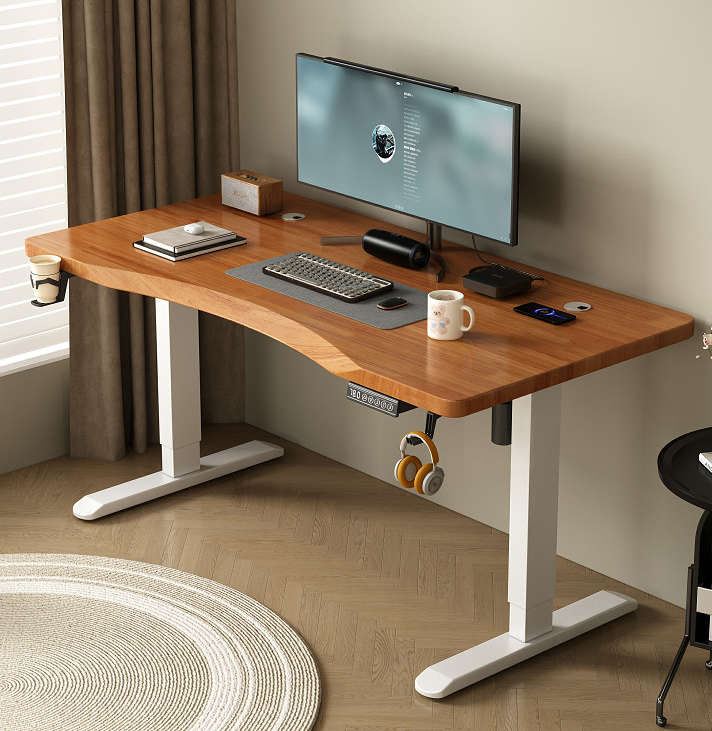

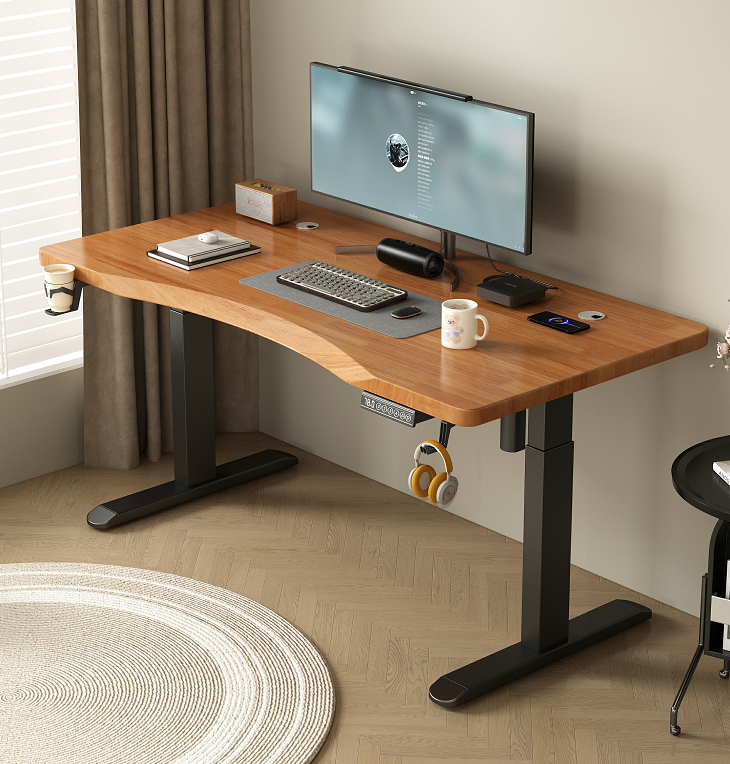

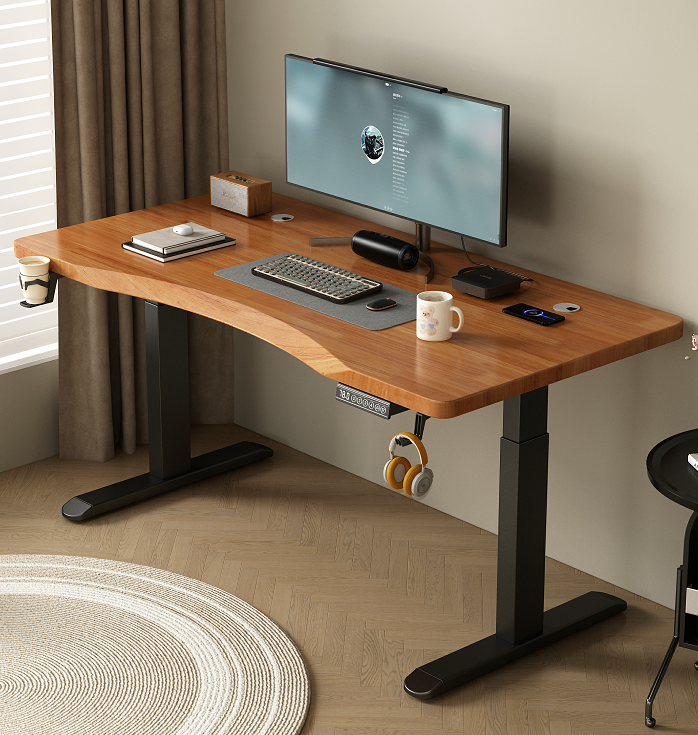

FS-DF-SM2-CR | Single Motor 2-Section Electric Standing Desk with 25mm Ergonomic Curved Desktop, 70-118cm Height | Adjustable Sit Stand Workstation for Home Office

Core Highlights:

Ergonomic Curved 25mm Thermoformed Desktop: Sweeping arched silhouette combines ergonomic comfort with a bold visual statement — 25mm thick eco-friendly thermoformed board in White Carbon Fiber, Black Carbon Fiber, and Walnut.

Complete Desktop Included: Ships ready-to-assemble — frame, 25mm curved desktop, and hardware in one purchase. No separate top needed.

Selectable Mounting Type:

  • Standard Mount (Positive) — classic upright column design, reinforced 45×75×1.2mm main tubes, 15.24kg frame.

  • Inverted Mount (Bottom-Driven) — hidden motor profile, 45×65×1.2mm main tubes, 13.44kg frame. Both deliver the same smooth 480mm stroke from 70cm to 118cm.

80kg Heavy-Duty Capacity: Reinforced steel tubes support up to 80kg — dual monitors, desktop PC, and equipment handled with ease.

3-Way Customizable Connecting Bar:

  • Fixed Single Bar — 73cm (desktops 80/100/120cm) or 113cm (desktops 140/160cm).

  • Fixed Double Bar or Telescopic Double Bar — for maximum structural rigidity.

Smart Optional Accessories:

  • Armor Light Shell — vibrant snap-on casing with built-in RGB lighting and dedicated remote.

  • Front Power Hub — 6 five-hole sockets + USB + Type-C.

  • Back Power Hub — 6 five-hole sockets, discreet under-desk mount.

  • Anti-Slip Fast Wireless Charger — drop and charge instantly.

Sturdy Anti-Wobble Base: 20×60×1.5mm thick foot tubes with adjustable leveling pads — stable at any height on any floor.

Efficient Split Packaging: Frame 1010×210×157mm (0.033m³) + Desktop 1300×670×66mm (0.057m³) — optimized for container loading.

Fully Customizable: Desktop material, style, color, mounting type, connecting bar, accessories, and custom LOGO — OEM & ODM orders welcome.

TEL:+86 152-3983-8932(whatsapp)
E-mail:hui@finesteelgroup.com

Product Category

Technical Specifications
MODEL NUMBERFS-DF-SM2-CR
MOTOR TYPESingle Motor, 2-Section Column
MOUNTING TYPEStandard (Positive) / Inverted (Bottom-Driven) — Selectable
HEIGHT RANGE700 – 1180 mm (480mm Stroke)
SPEED15 mm/s (Standard) / 20 mm/s (Boost)
DESKTOP1200 × 600 × 25 mm — Thermoformed Board, Ergonomic Edge
DESKTOP COLORSWhite Carbon Fiber / Black Carbon Fiber / Walnut
MOUNTING TYPESTANDARD MOUNTINVERTED MOUNT
MAX LOAD80 kg80 kg
MAIN TUBE45 × 75 × 1.2 mm45 × 65 × 1.2 mm
INNER TUBE40 × 70 × 1.2 mm40 × 60 × 1.2 mm
FOOT TUBE20 × 60 × 1.5 mm20 × 60 × 1.5 mm
CROSS BEAM TUBE20 × 40 × 1.2 mm (Dual)20 × 40 × 1.2 mm
FRAME WEIGHT15.24 kg13.44 kg
DESKTOP WEIGHT14 kg14 kg
FRAME PACKAGE1010 × 210 × 157 mm (0.033 m³)1010 × 210 × 157 mm (0.033 m³)
DESKTOP PACKAGE1300 × 670 × 66 mm (0.057 m³)1300 × 670 × 66 mm (0.057 m³)
CONNECTING BARFixed Single (730 / 1130mm) / Fixed Double / Telescopic Double
DESKTOP — 25MM1200 × 600 × 25 mm Thermoformed Board / 4 Styles / 3 Colors
DESKTOP STYLESStandard / Ergonomic Recessed / Curved
FRAME MATERIALHigh-Grade SPCC Cold-Rolled Steel
FINISHElectrostatic Powder Coating
OPTIONAL ACCESSORIESArmor Light Shell / USB+Type-C Outlet / 6-Socket Strip / Wireless Charger
CERTIFICATIONSISO9001 / ISO14001 / CE
CUSTOMIZATIONDesktop / Connecting Bar / Mounting / Accessories / LOGO — OEM & ODM Welcome
APPLICATIONHome Office, Corporate, Studio, Gaming, Ergonomic Workstation
