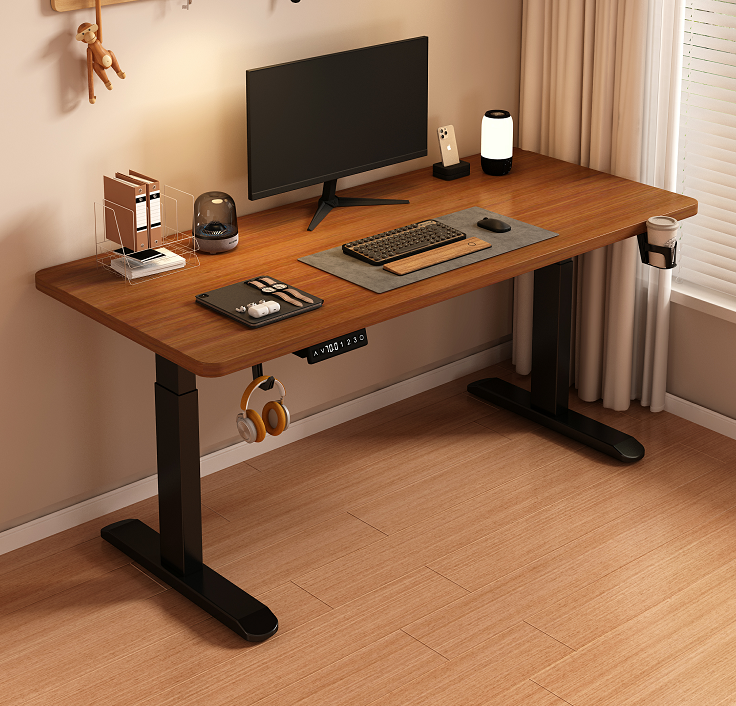

FS-DF-SM2-ST | Single Motor 2-Section Electric Standing Desk with 15mm MDF Desktop, 70-118cm Height | Customizable Sit Stand Workstation for Home Office

Core Highlights:

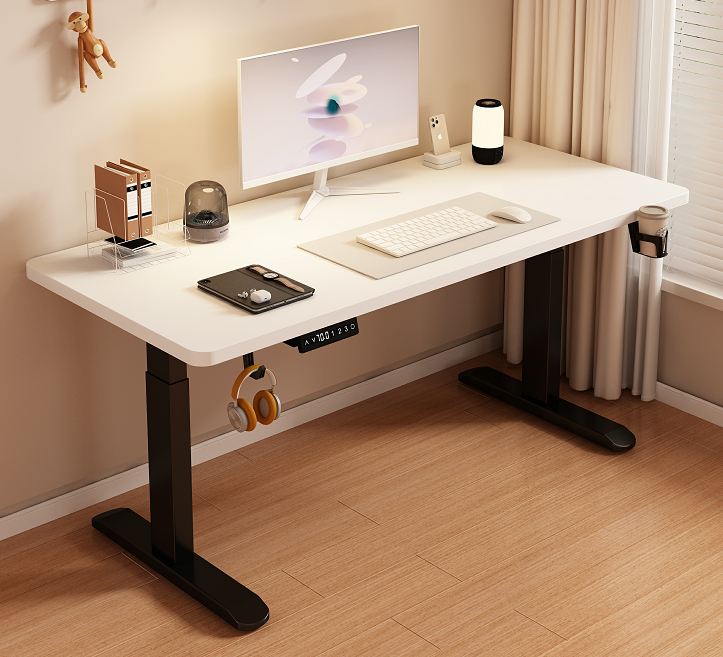

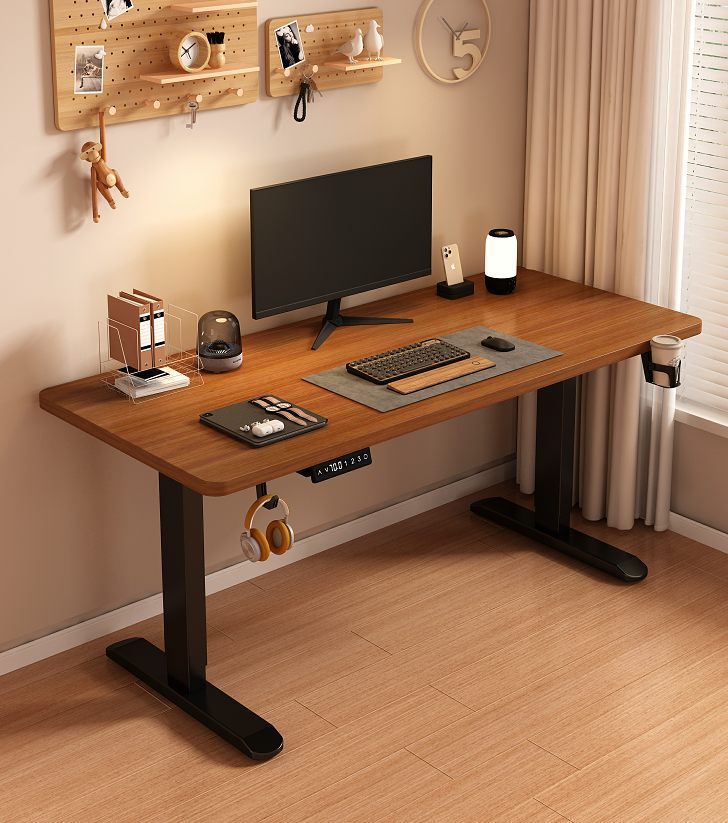

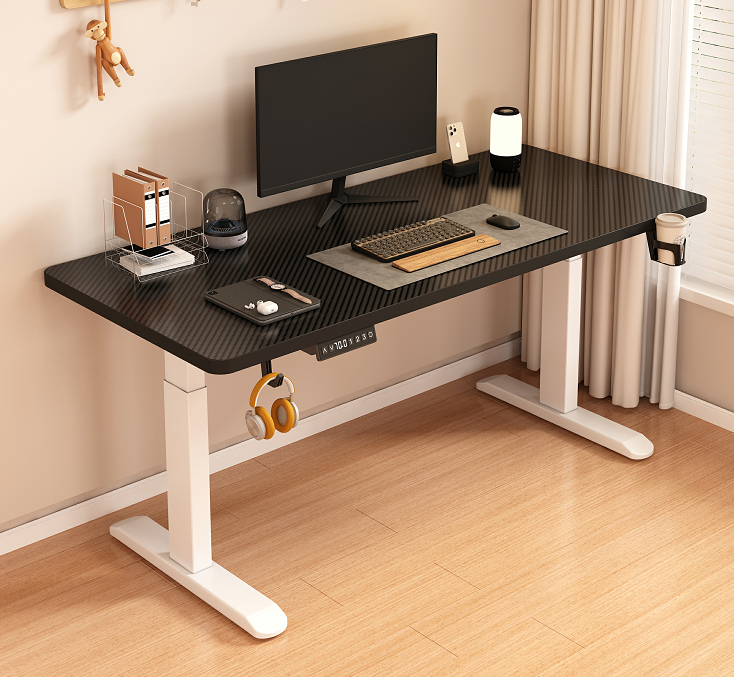

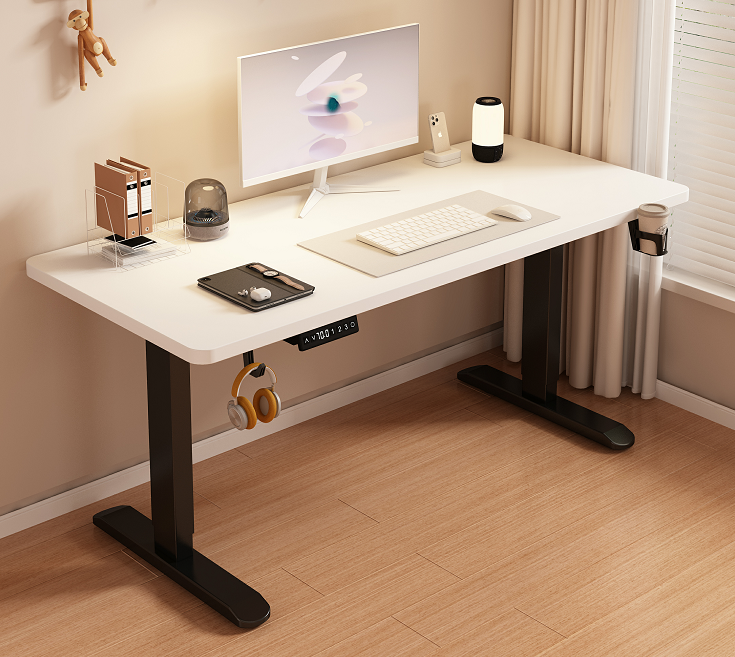

Complete Desktop Included: Ships with 15mm eco-friendly MDF desktop in rich Walnut finish — also available in White Carbon Fiber and Black Carbon Fiber. Ready to assemble out of the box.

Selectable Mounting Type:

  • Standard Mount (Positive) — classic upright column design, reinforced 45×75×1.2mm main tubes, 81kg max load, 22.15kg gross weight.

  • Inverted Mount (Bottom-Driven) — hidden motor profile, 45×65×1.2mm main tubes, 80kg max load, 19kg gross weight. Both deliver the same smooth 480mm stroke from 70cm to 118cm.

4-Way Customizable Connecting Bar:

  • Fixed Single Bar — 73cm (desktops 80/100/120cm) or 113cm (desktops 140/160cm).

  • Telescopic Single Bar — 80-110cm or 105-150/151cm.

  • Fixed Double Bar or Telescopic Double Bar — for maximum structural rigidity.

Reinforced Steel Frame: Heavy-gauge SPCC cold-rolled steel tubes with electrostatic powder coating — built for daily stability under full load.

Smart Optional Accessories:

  • Armor Light Shell — snap-on RGB casing with dedicated remote for customizable workspace ambience.

  • Front Power Hub — 6 five-hole sockets + USB + Type-C.

  • Back Power Hub — 6 five-hole sockets, discreet under-desk mount.

  • Anti-Slip Fast Wireless Charger.

Compact Flat-Pack Shipping: Frame and desktop packed separately for cost-efficient container loading and safe transit.

Fully Customizable: Desktop material, style, color, mounting type, connecting bar, accessories, and custom LOGO — OEM & ODM orders welcome.

TEL:+86 152-3983-8932(whatsapp)
E-mail:hui@finesteelgroup.com

Product Category

Technical Specifications
MODEL NUMBERFS-DF-SM2-ST
MOTOR TYPESingle Motor, 2-Section Column
MOUNTING TYPEStandard (Positive) / Inverted (Bottom-Driven) — Selectable
HEIGHT RANGE700 – 1180 mm (480mm Stroke)
SPEED15 mm/s (Standard) / 20 mm/s (Boost)
DESKTOP600 × 1200 × 15 mm — Eco-Friendly MDF
DESKTOP COLORSWhite Carbon Fiber / Black Carbon Fiber / Walnut
MOUNTING TYPESTANDARD MOUNTINVERTED MOUNT
MAX LOAD81 kg80 kg
MAIN TUBE45 × 75 × 1.2 mm45 × 65 × 1.2 mm
INNER TUBE40 × 70 × 1.2 mm40 × 60 × 1.2 mm
FOOT TUBE20 × 60 × 1.5 mm20 × 60 × 1.5 mm
CROSS BEAM TUBE20 × 40 × 1.2 mm (Dual)20 × 40 × 1.2 mm
GROSS WEIGHT22.15 kg19 kg
PACKAGE SIZE1220 × 360 × 170 mm1220 × 360 × 160 mm
PACKAGE VOLUME0.075 m³0.07 m³
CONNECTING BARFixed Single (730 / 1130mm) / Telescopic Single (800-1100 / 1050-1510mm) / Fixed Double / Telescopic Double
DESKTOP — 15MM600 × 1200 × 15 mm Eco-Friendly MDF / 3 Styles / 3 Colors
DESKTOP STYLESStandard / Ergonomic / Curved
FRAME MATERIALHigh-Grade SPCC Cold-Rolled Steel
FINISHElectrostatic Powder Coating
OPTIONAL ACCESSORIESArmor Light Shell / USB+Type-C Outlet / 6-Socket Strip / Wireless Charger
CERTIFICATIONSISO9001 / ISO14001 / CE
CUSTOMIZATIONDesktop / Connecting Bar / Mounting / Accessories / LOGO — OEM & ODM Welcome
APPLICATIONHome Office, Corporate, Studio, Gaming, Ergonomic Workstation
