FS-DF-DM3-S | Dual Motor 3-Section Heavy-Duty Electric Standing Desk, 60-125cm Height, 120kg Load | Adjustable Sit Stand Workstation for Home Office

Core Highlights:

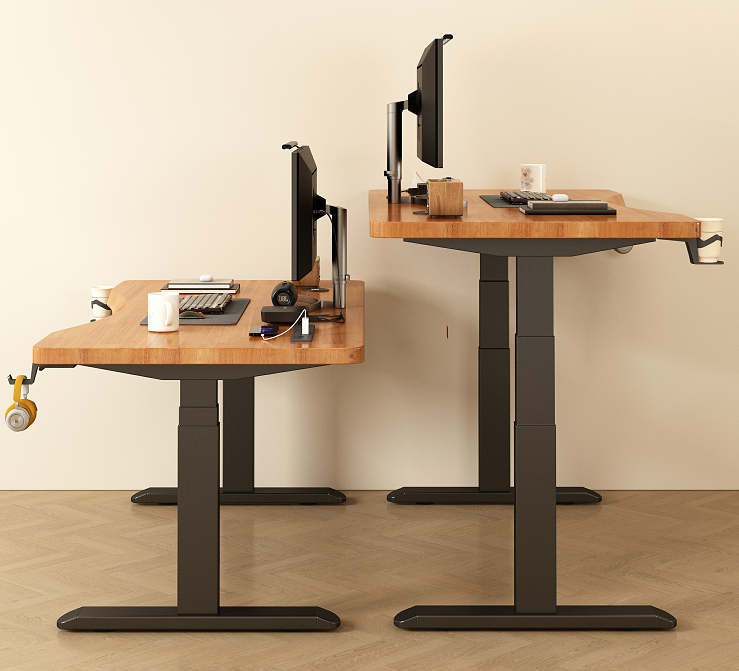

Triple-Section Extended Range: Three telescopic columns deliver an ultra-wide 650mm stroke from 60cm to 125cm — goes lower than standard desks for children and petite users, and higher than most for standing at full extension.

Dual Motor 120kg Heavy-Duty Capacity: Twin synchronized motors paired with reinforced 50×80×1.5mm main tubes, 45×75×1.5mm middle columns, and 40×70×1.5mm inner tubes — supports 120kg for the heaviest multi-monitor, desktop PC, and professional equipment setups.

High-Speed 20mm/s Lift: Dual motors lift the full 120kg load at a consistent 20mm/s — transition from sitting to standing in under 33 seconds across the full 650mm range.

Customizable Desktop Options:

  • 25mm Thermoformed Eco-Board — 4 styles (Standard, Ergonomic Recessed, 2× Curved) in White Carbon Fiber, Black Carbon Fiber, and Walnut.

  • 15mm Eco-Friendly MDF Board — 3 styles (Standard, Ergonomic Recessed, Curved) in White Carbon Fiber, Black Carbon Fiber, and Walnut. Desktop package 1300×670×66mm (0.057m³, 15.6kg).

3-Way Customizable Connecting Bar:

  • Fixed Single Bar / Telescopic Single Bar / Telescopic Double Bar.

Smart Optional Accessories:

  • Armor Light Shell — snap-on RGB casing with dedicated remote.

  • Front Power Hub — 6 five-hole sockets + USB + Type-C.

  • Back Power Hub — 6 five-hole sockets, discreet under-desk mount.

  • Anti-Slip Fast Wireless Charger — drop and charge instantly.

Sturdy Anti-Wobble Base: 20×70×2.0mm extra-thick foot tubes with adjustable leveling pads — rock-solid at max extension under full load.

Efficient Split Packaging: Frame 960×400×140mm (0.054m³, 21.48kg) + Desktop 1300×670×66mm (0.057m³, 15.6kg) — optimized for container loading.

Fully Customizable: Desktop material, style, color, connecting bar, accessories, and custom LOGO — OEM & ODM orders welcome.

TEL:+86 152-3983-8932(whatsapp)
E-mail:hui@finesteelgroup.com

Product Category

Technical Specifications
MODEL NUMBERFS-DF-DM3-S
MOTOR TYPEDual Motor, 3-Section Column (Standard Mount)
HEIGHT RANGE600 – 1250 mm (650mm Stroke)
SPEED20 mm/s
MAX LOAD120 kg
MAIN TUBE50 × 80 × 1.5 mm
MIDDLE TUBE45 × 75 × 1.5 mm
INNER TUBE40 × 70 × 1.5 mm
FOOT TUBE20 × 70 × 2.0 mm
CROSS BEAM TUBE20 × 40 × 1.2 mm (Dual)
CONNECTING BARFixed Single / Telescopic Single / Telescopic Double
DESKTOP — 25MM1200 × 600 × 25 mm Thermoformed Board / 4 Styles / 3 Colors
DESKTOP — 15MM1200 × 600 × 15 mm Eco-Friendly MDF / 3 Styles / 3 Colors
DESKTOP STYLESStandard / Ergonomic Recessed / Ergonomic Curved
DESKTOP COLORSWhite Carbon Fiber / Black Carbon Fiber / Walnut
FRAME WEIGHT21.48 kg
DESKTOP WEIGHT15.6 kg
FRAME PACKAGE SIZE960 × 400 × 140 mm (0.054 m³)
DESKTOP PACKAGE SIZE1300 × 670 × 66 mm (0.057 m³)
FRAME MATERIALHigh-Grade SPCC Cold-Rolled Steel
FINISHElectrostatic Powder Coating
OPTIONAL ACCESSORIESArmor Light Shell / USB+Type-C Outlet / 6-Socket Strip / Wireless Charger
CERTIFICATIONSISO9001 / ISO14001 / CE
CUSTOMIZATIONDesktop / Connecting Bar / Accessories / LOGO — OEM & ODM Welcome
APPLICATIONHome Office, Corporate, Studio, Gaming, Ergonomic Workstation
