Core Highlights

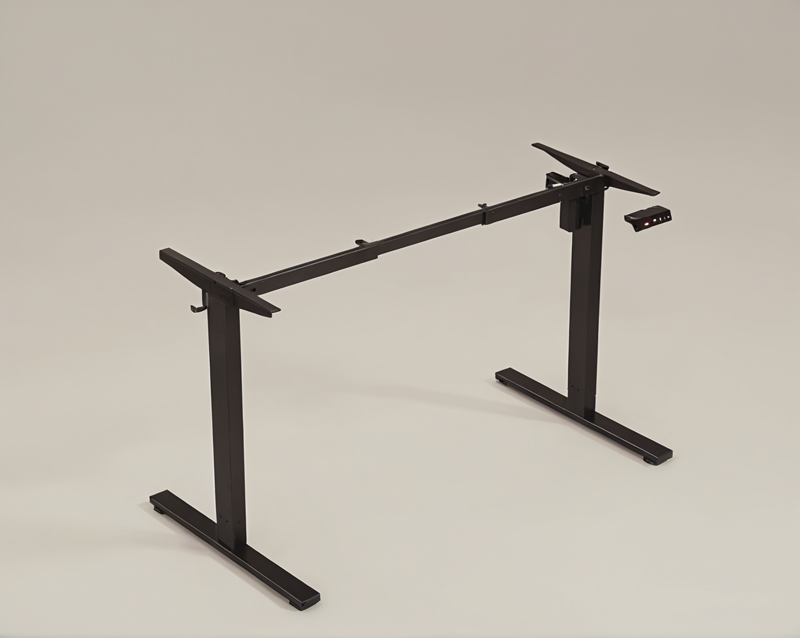

• Single Motor 2-Stage Drive: Reliable single-motor system delivers smooth height adjustment from 70cm to 118cm (480mm stroke), supporting up to 80kg load with 20mm/s speed — covers seated and standing heights for users of all statures.

• Dual Mounting Configurations — One Link:

• Positive Mount: Columns mounted above the frame — heavier-duty 45×75mm main tube with 40×70mm inner tube (1.2mm bare-wall SPCC steel), rated at 80kg, for maximum stability and under-desk clearance.

• Inverted Mount: Columns mounted below the frame — compact 45×65mm main tube with 40×60mm inner tube (1.2mm bare-wall SPCC steel), rated at 70–80kg, for a lighter 13.44kg profile ideal for cost-sensitive applications.

• 4-Way Connection Bar Configuration: Choose from Fixed Single (73cm / 113cm), Telescopic Single (80–110cm / 105–152cm), Fixed Dual, or Telescopic Dual crossbeams — all 20×40×1.2mm steel — to match any desktop width from 80cm to 160cm.

• Stable Wide Foot Design: 20×60×1.5mm heavy-gauge steel feet on both mounting types provide a solid, anti-tip base on any floor surface.

• Compact Flat-Pack Shipping: KD flat-packed in a space-saving 1010×210×157mm carton (just 0.033m³) — 13.24–15.24kg depending on configuration — significantly reducing per-unit freight costs for bulk orders.

• Fully Customizable: Available in matte white and matte black finishes, with flexible connection bar, mounting type, and desktop compatibility options — OEM & ODM orders welcome. Optional accessories include Armor remote, power strip, and cable tray.
